Project 3: Perl script to count Air Conditioner Cycles using temperature data
2017-10-07
Objective:
Use perl scripting and temperature data stream set-up in project 1 to calculate the number of air conditioning cycles in a given time.
Materials:
1. Temperature data as per project 1.
2. Linux workstation.
Software:
1. Linux OS2. Perl 5 version 22
3. Gnuplot 5.0
Theory:

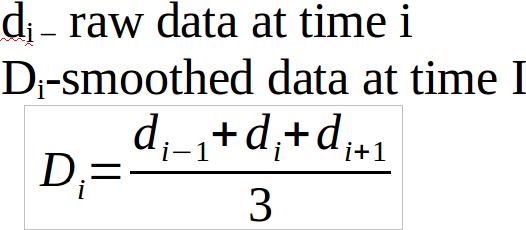

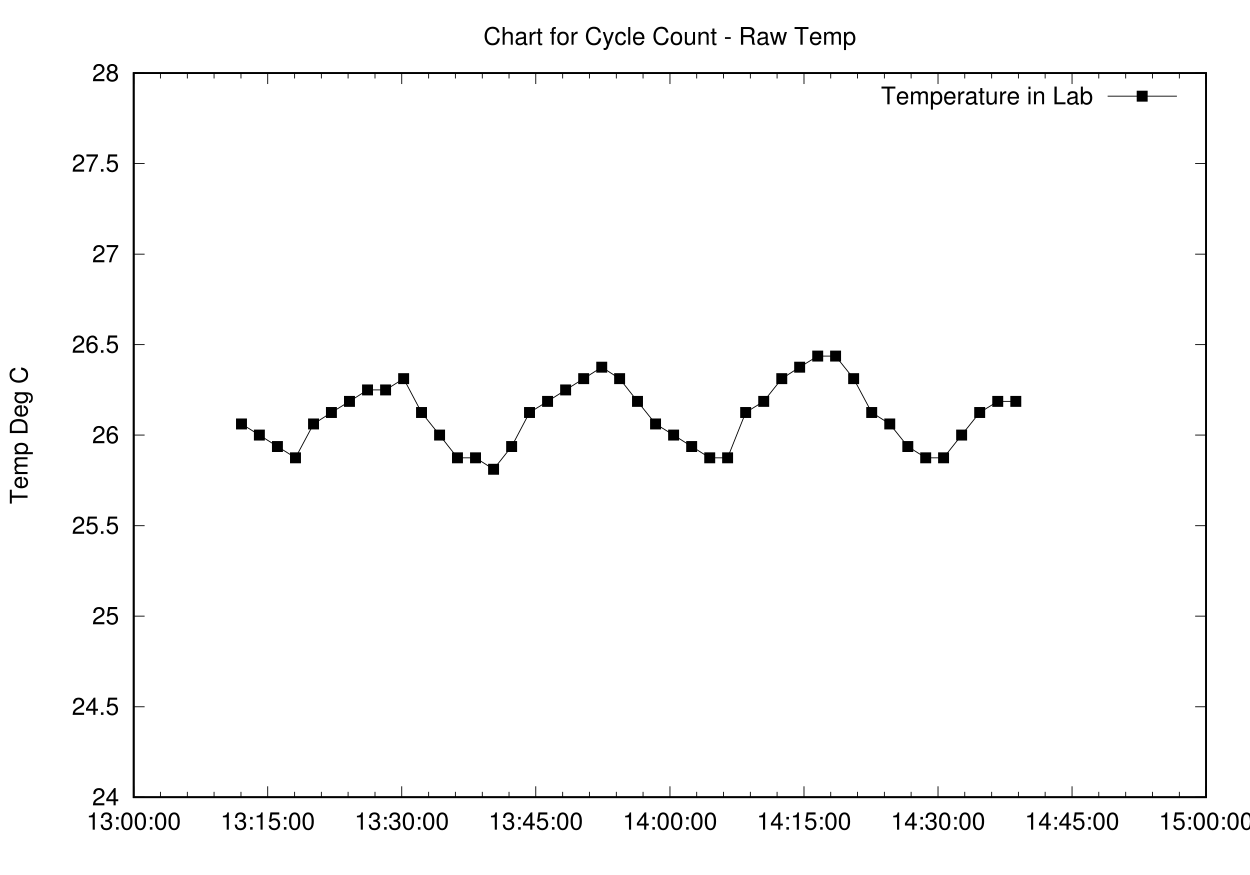

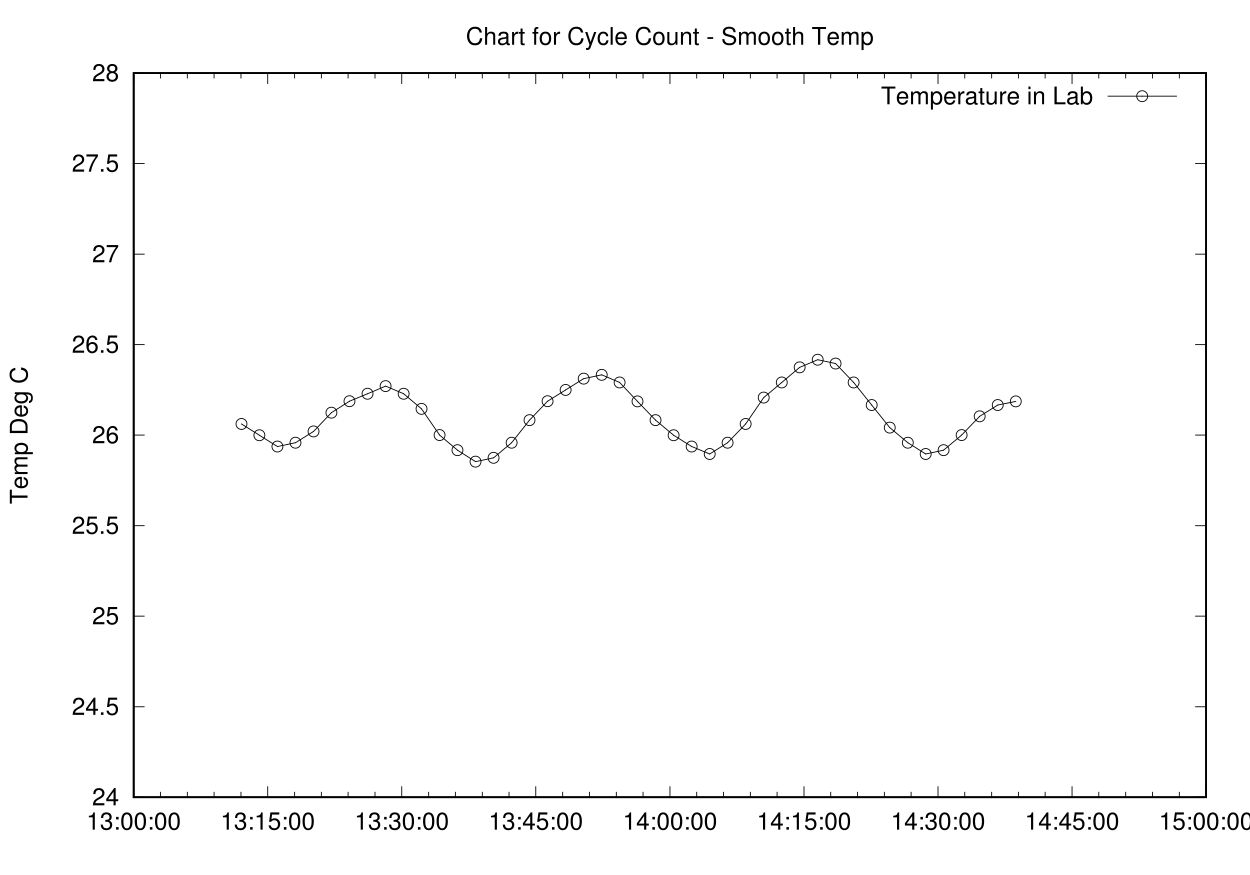

1. The temperature cycle that we are interested is a low frequency event. Outdoor temperature raises indoor temperature until upper set point is reached, at which point air conditioner activates forcing temperature down until lower set point is reached turning air conditioner off. This creates sinusoidal data, and the time between upper set points is one cycle.2. The raw temperature sensor appears to have some noise. One pass of a smoothing, used rectangular boxcar moving average, appears to improve the temperature trend.
 |
 |
|---|

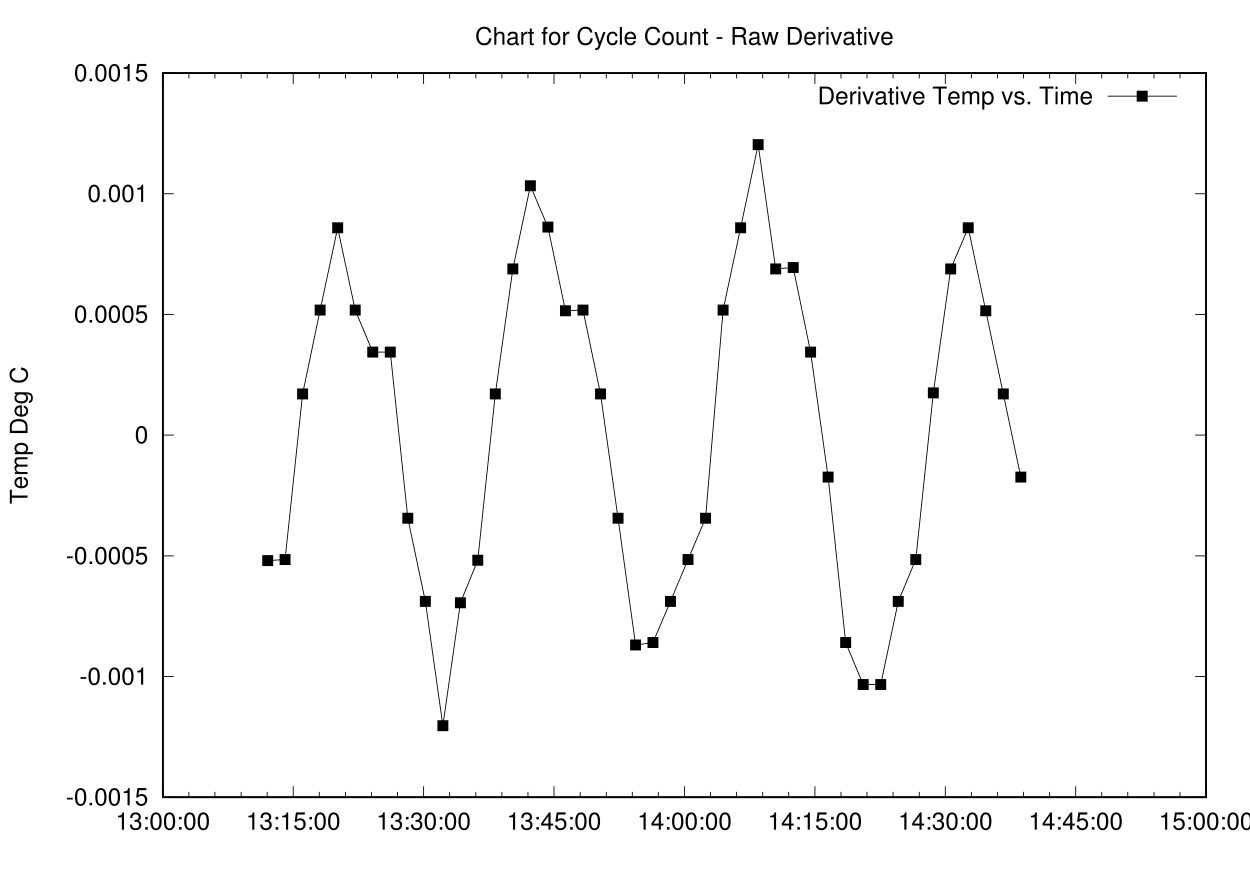

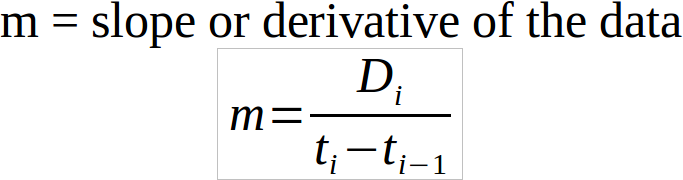

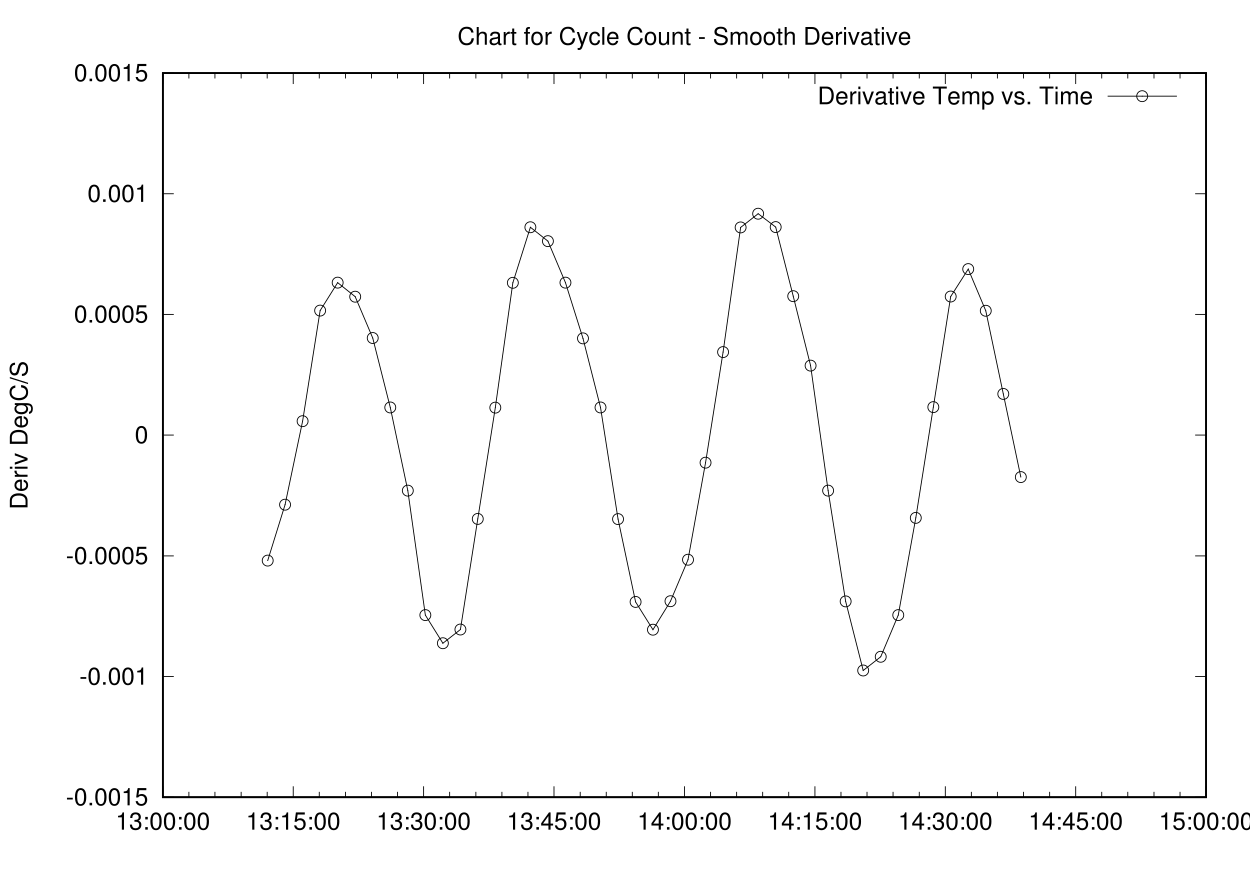

3. The derivative of the temperature versus time will provide zeros at the peaks (i.e. tangent slope is 0). This can be used to count the air conditioner cycles. The derivative of smoothed temperature vs. time data yielded noisy data, so derivative data was smoothed.
 |
 |
|---|
4. To find zeros loop through data and look for sign changes. Estimate cycle count by halfing number of zeros found.
Perl Script:
Click here to get a copy of perl script.
Click here to get a copy of the data.
Perl Script: Explained
GNUplot Script
Conclusion
You can now incorporate some data analysis along with recording the temperature data. That is it for this project.
