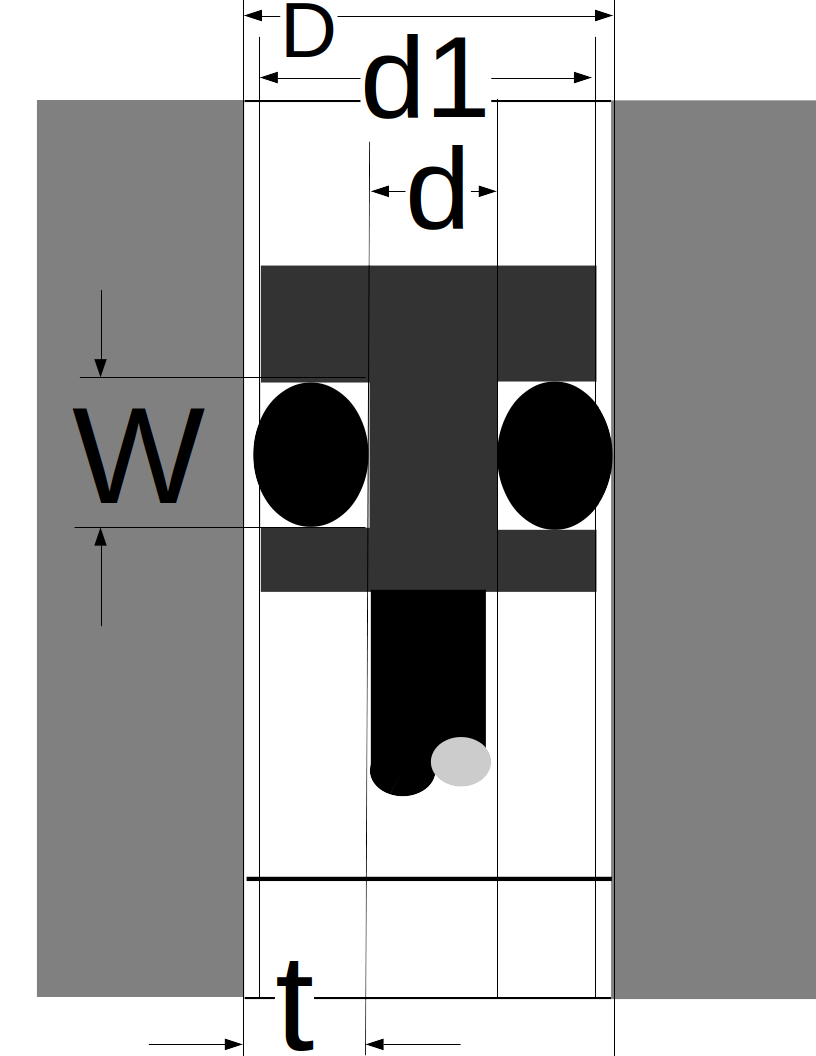

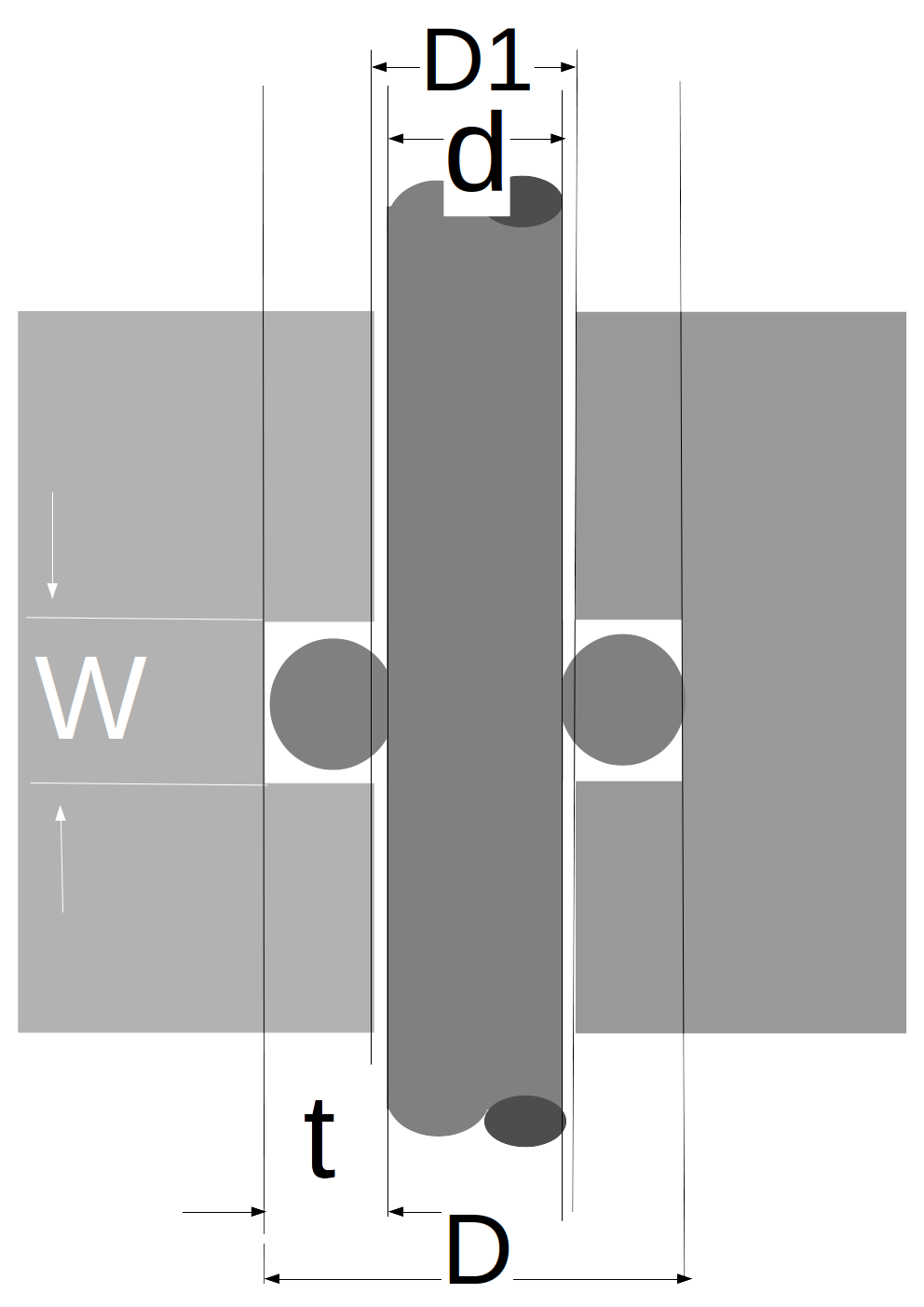

Mechanics Calculator: Rough Calculation of AS568 O-ring Gland.
2020-09-16
Warning: *** use at own risk ***

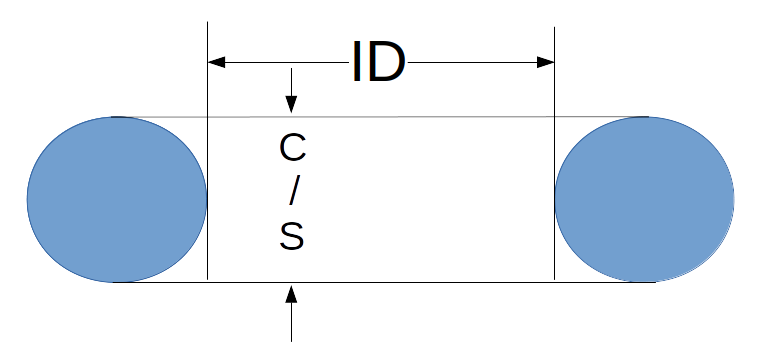

| Series | O-ring C/S (in) | O-Ring Start | O-Ring End |
| 0 | 0.070 | -004 | -050 |
| 1 | 0.103 | -102 | -178 |
| 2 | 0.139 | -201 | -284 |
| 3 | 0.210 | -309 | -395 |
| 4 | 0.275 | -425 | -475 |
